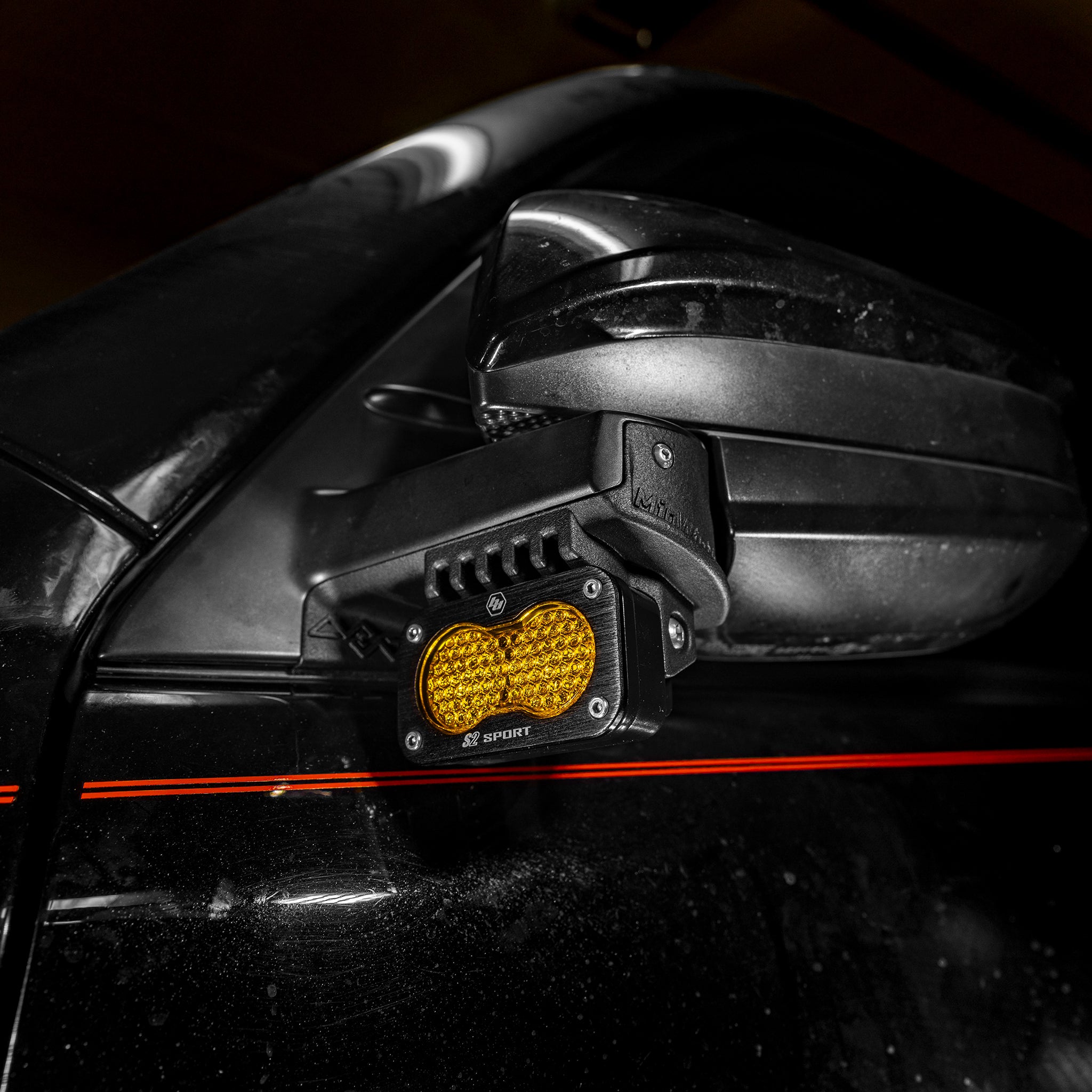

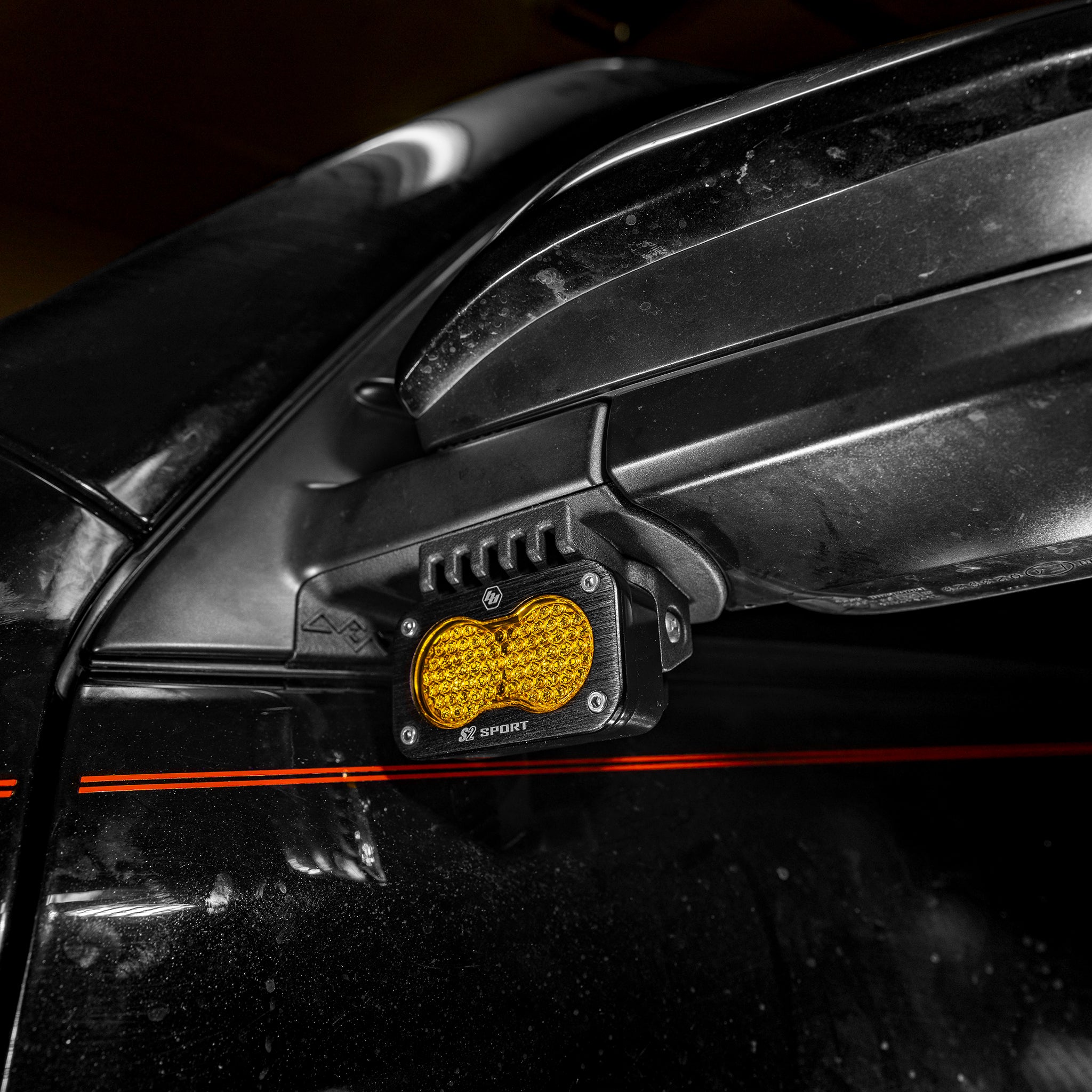

Side Mirror Ditch Light Mount Kit
An OEM+ style lighting solution designed to significantly improve light coverage near the front wheels, where hood mounted lights often fall short on the trails. With the lights positioned lower than the hood & beyond the fender, glare is virtually eliminated while maximizing usable output. Each mount is printed in PA12 using HP’s latest 5600 series MJF industrial printers, dyed black, media tumbled, shot peened polished, & finished with a UV stable 2K clear coat resulting in a durable finish with a heat resistance up to 175°C (347°F) which exceeds the factory ASA material. A custom sleeved wiring harness is included in the kit. Designed, tested, & manufactured in the USA.
Key Features
• Compact OEM+ design that blends cleanly with the factory trim
• Significantly improved light coverage without body panel obstruction or hood glare
• Finished with automotive-grade Clear Coat for long-term UV Resistance & Durability
• Sold in Sets & includes a custom sleeved wiring harness (options listed below)
Notes: Auxiliary Pod Light NOT included
BEFORE
AFTER

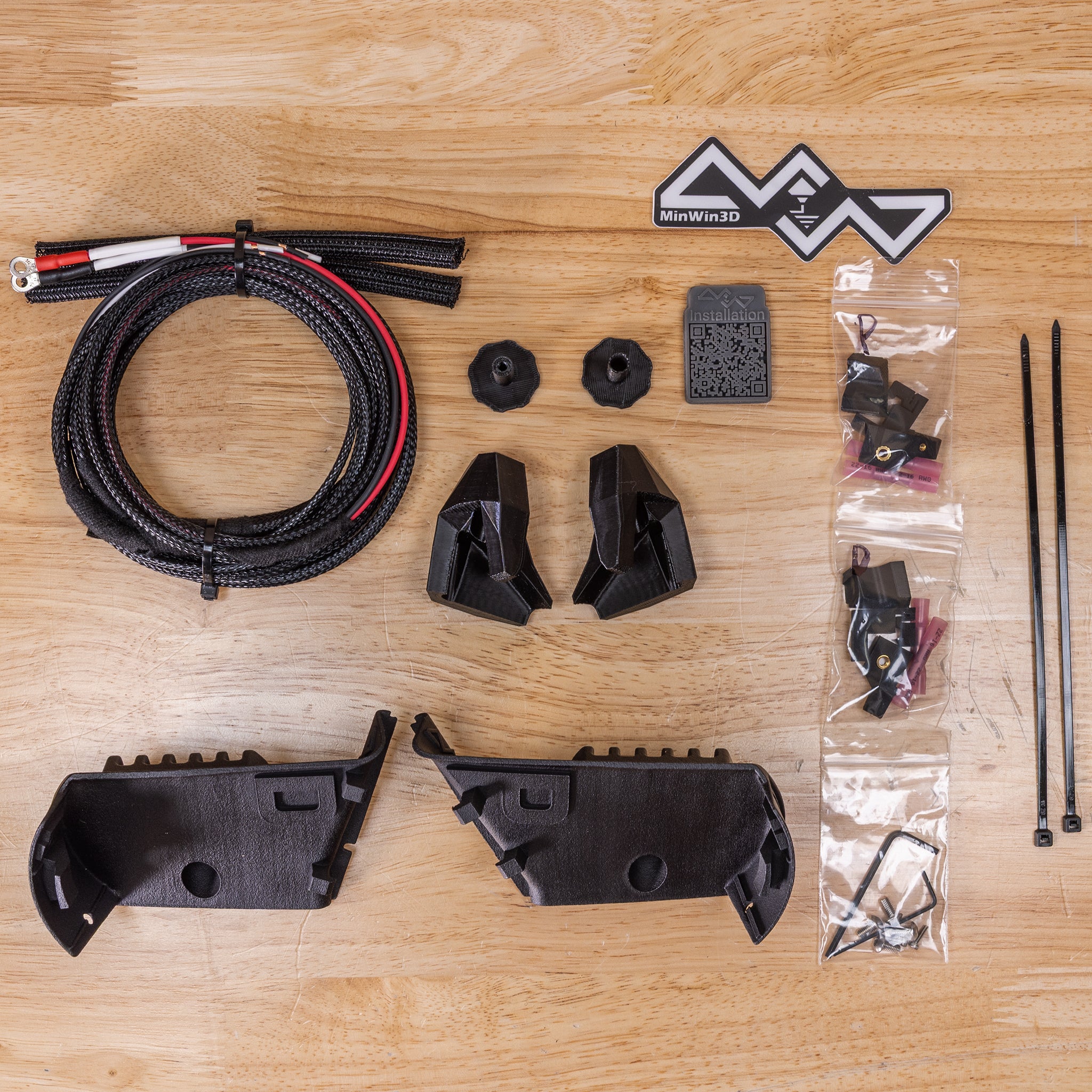

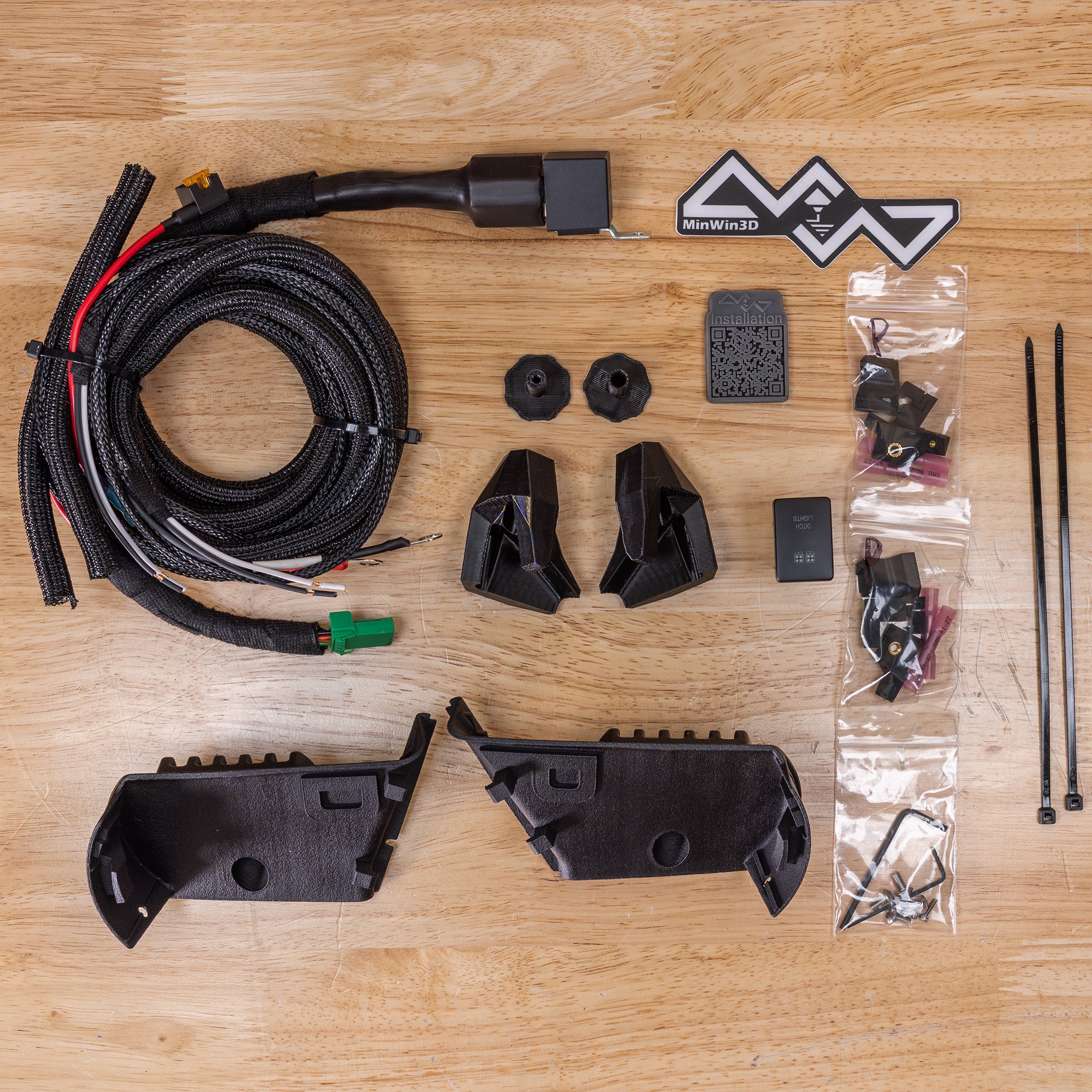

What's included in the kit?
• 2x Side Mirror Ditch Light Mounts (Driver & Passenger)
• 1x Custom Sleeved Wiring Harnesses (OEM-Style Switch OR Switch Panel)

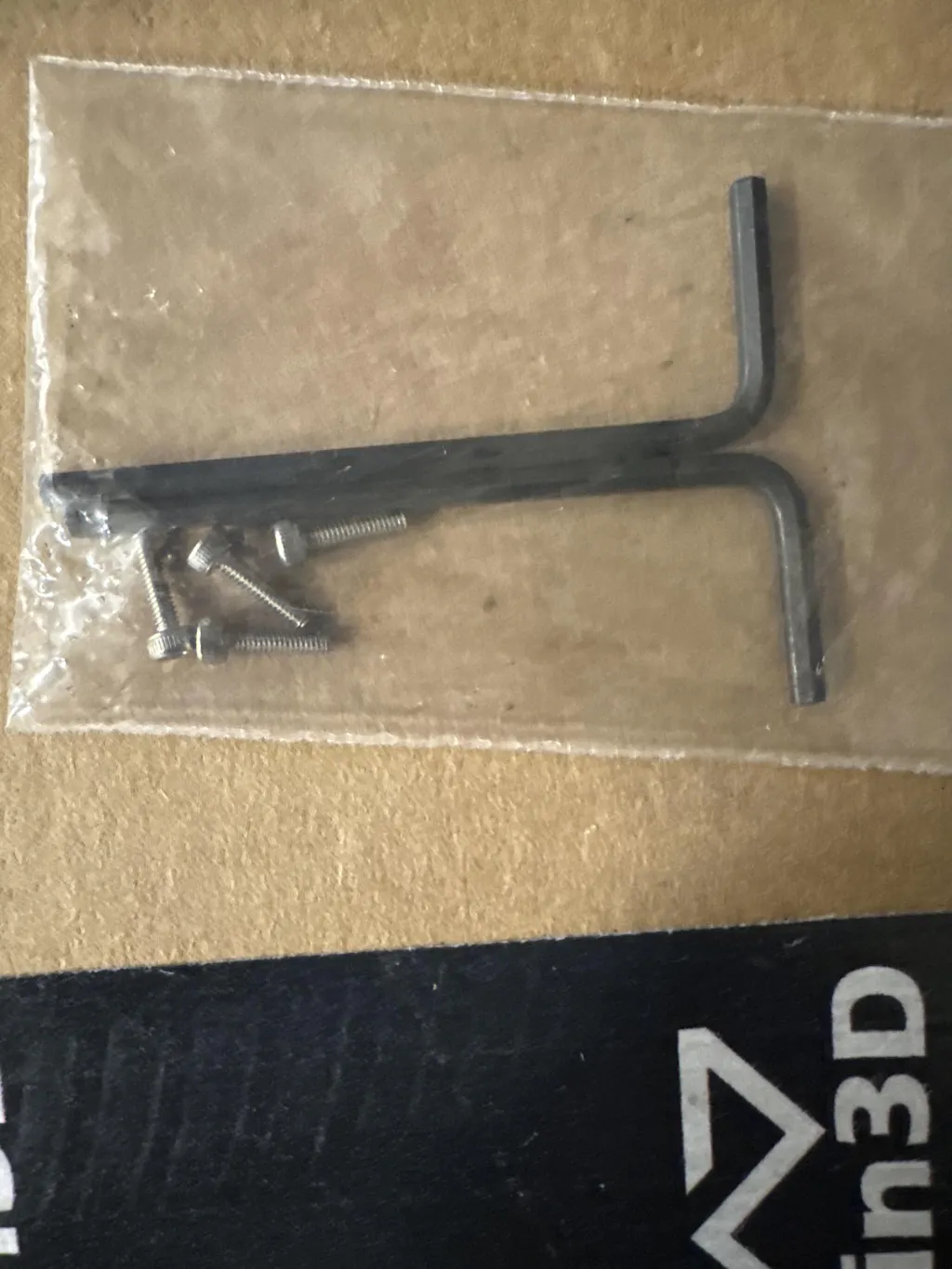

Installation hardware included:
• 2x Clip-on Drill Guides (Driver & Passenger)
• 2x Step-down Drill Guide Inserts
• 2x Drill Guide Supports (Driver & Passenger)
• 4x Custom Screw Clips w/ Brass Threaded Inserts
• 4x M4 Stainless Steel Screws
• 2x M2 Stainless Steel Screws
• 4x Butt Connectors
• 1x M2.5 Hex Key
• 1x M1.5 Hex Key
Which wiring harness do I need?
The wiring harness that you need depends on how you plan to control your lights and accessories. This kit is compatible with Switch Panels (SwitchPro/AuxBeam/SPOD/etc) but can also be controlled with a dedicated switch.
Compatibility Note: Due to insufficient clearance, the wiring harness that came with the Baja Design S2 lights is not compatible with the mount
Switch Panel: This option is standard and will include a custom sleeved wiring harness for your switch panel and lights
OEM-Style Switch w/ Button: This option is an additional $35 and will include a cut-to-length sleeved wiring harness with a OEM-Style backlit button, relay, and inline fuse
Which auxiliary pod light lens should I use for optimal light coverage?
Baja Design S2: It is recommended to use the "Work/Scene" light pattern.
Due to the diffusion of light from the Work/Scene Len's flood beam pattern it is recommended to use the S2 Pro over the S2 Sports as higher light output will ensure sufficient intensity edge to edge.
Will this be available for other vehicles?
Yes, we will be expanding this mount kit to other vehicles.
We are currently compiling a "vehicle request" list and tracking the number of inquiries we receive for each vehicle to help us determine the order of which platform we will support next. All vehicles will be considered, new or old, so long as there is sufficient demand.
Feel free to reach out through email or social media to let us know which vehicle you'd like to see us support.

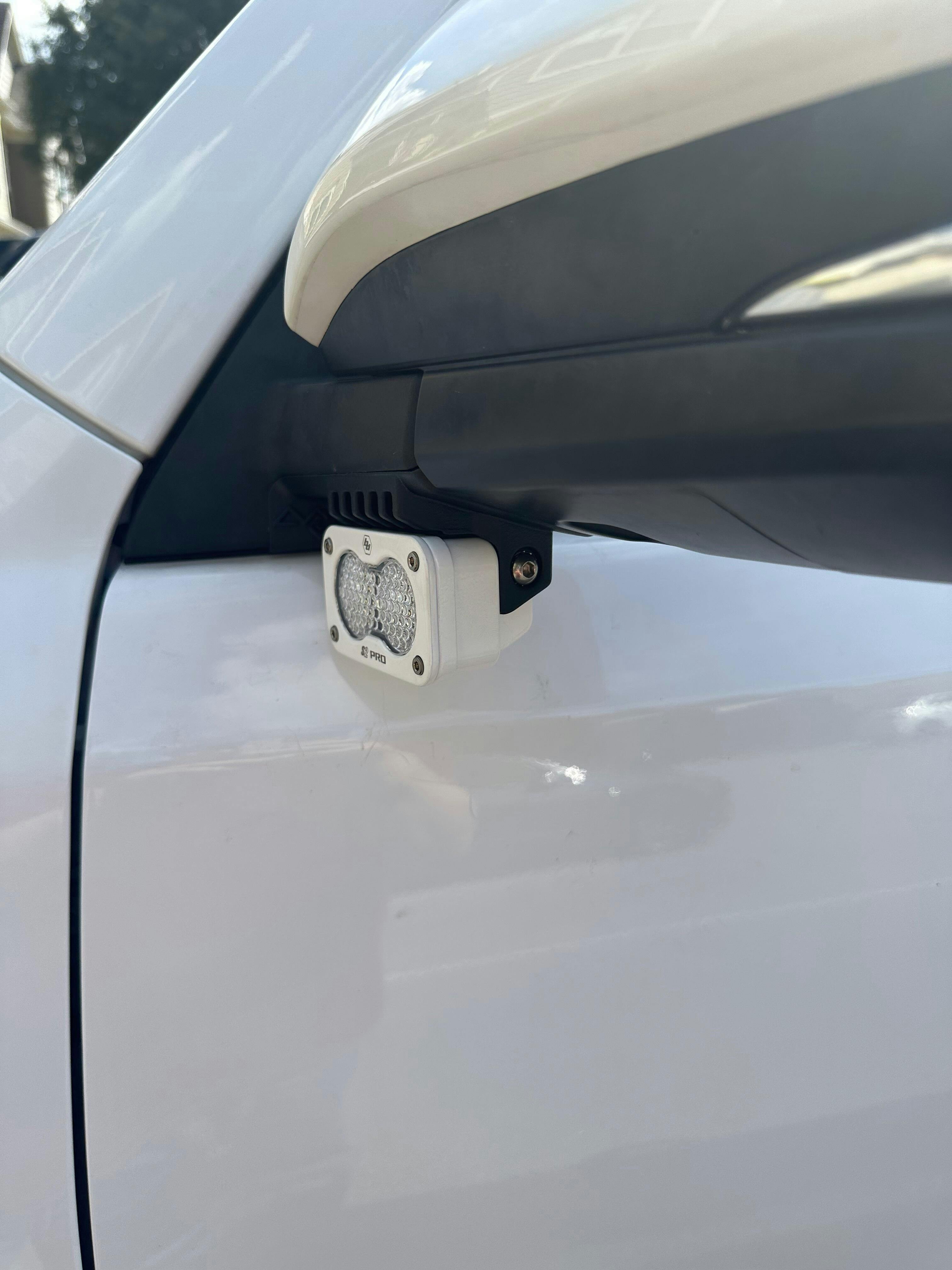

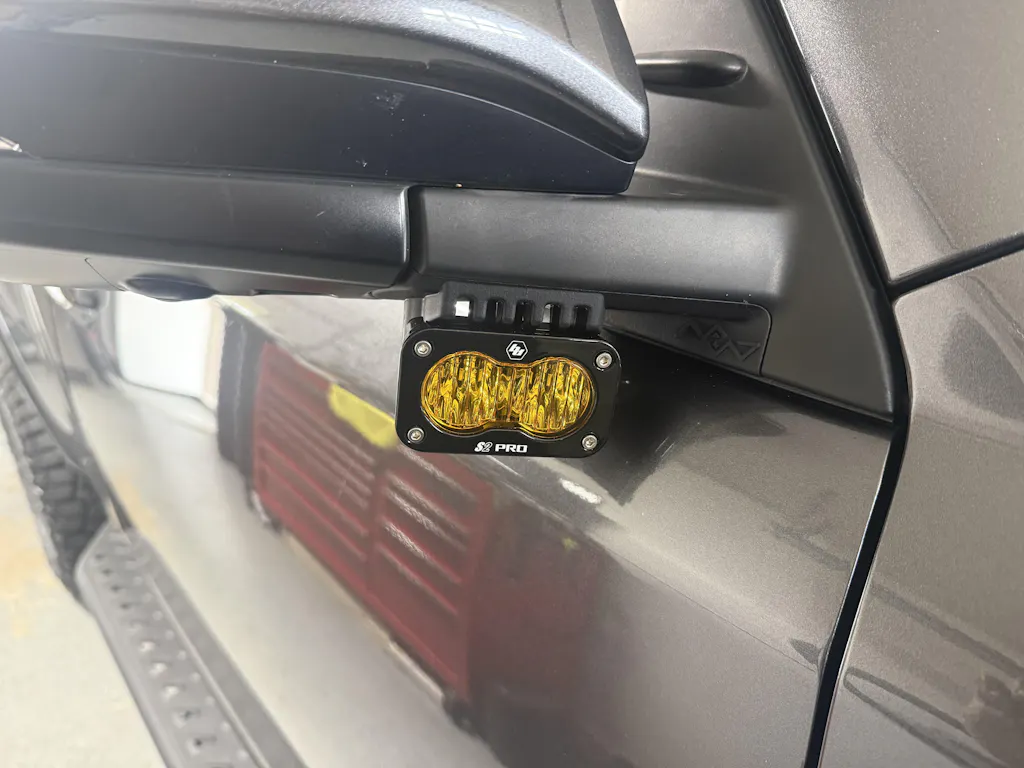

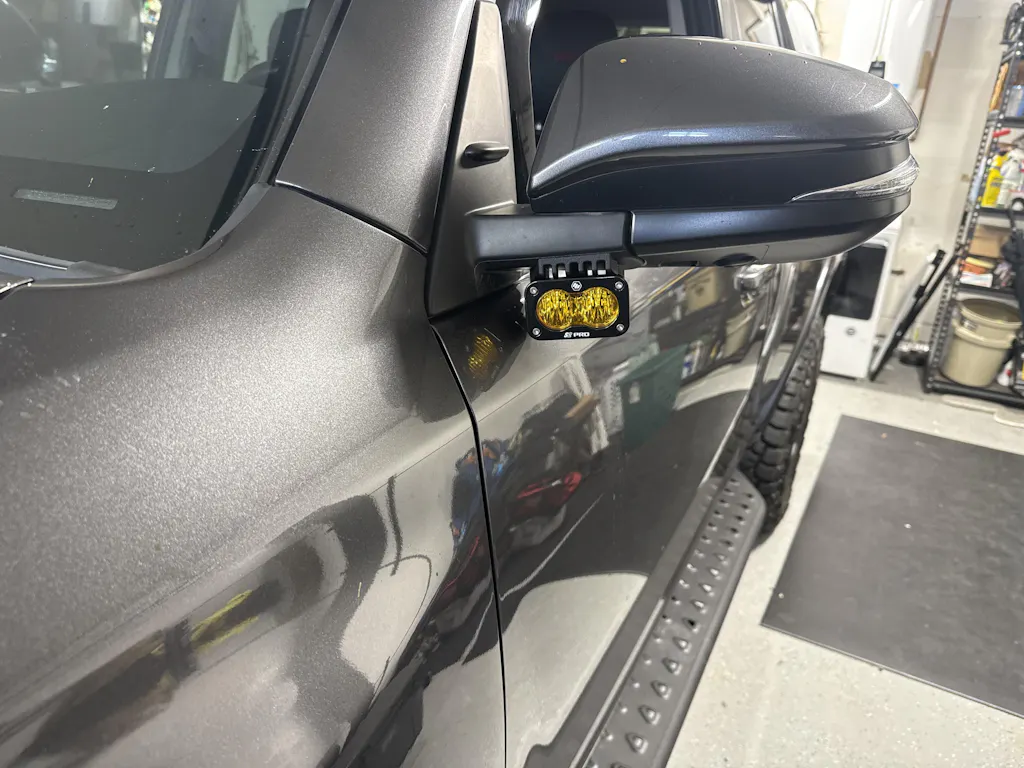

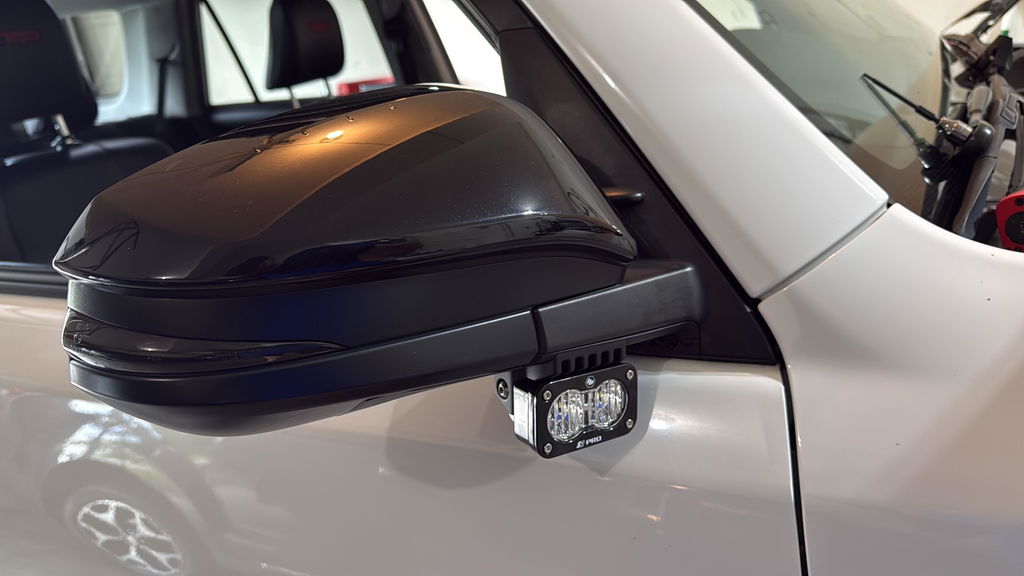

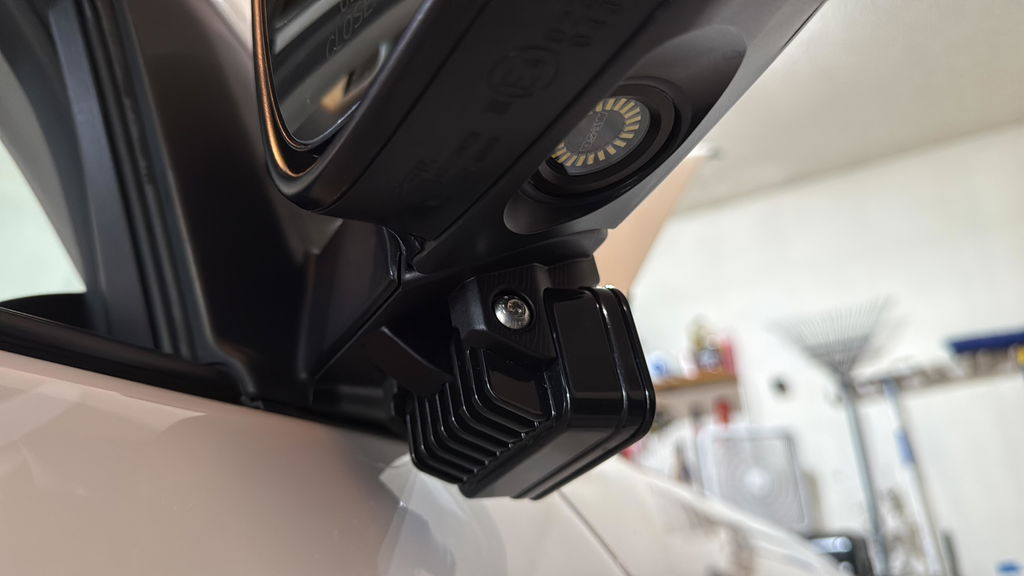

Absolutely amazing. Followed the install video, even dropped a nut into the door so I could enjoy that experience too. I placed a rag in the abis to avoid dropping a nut on the other side. Installation was easier than I thought it would be. Now please release the covers so I can protect the lights.

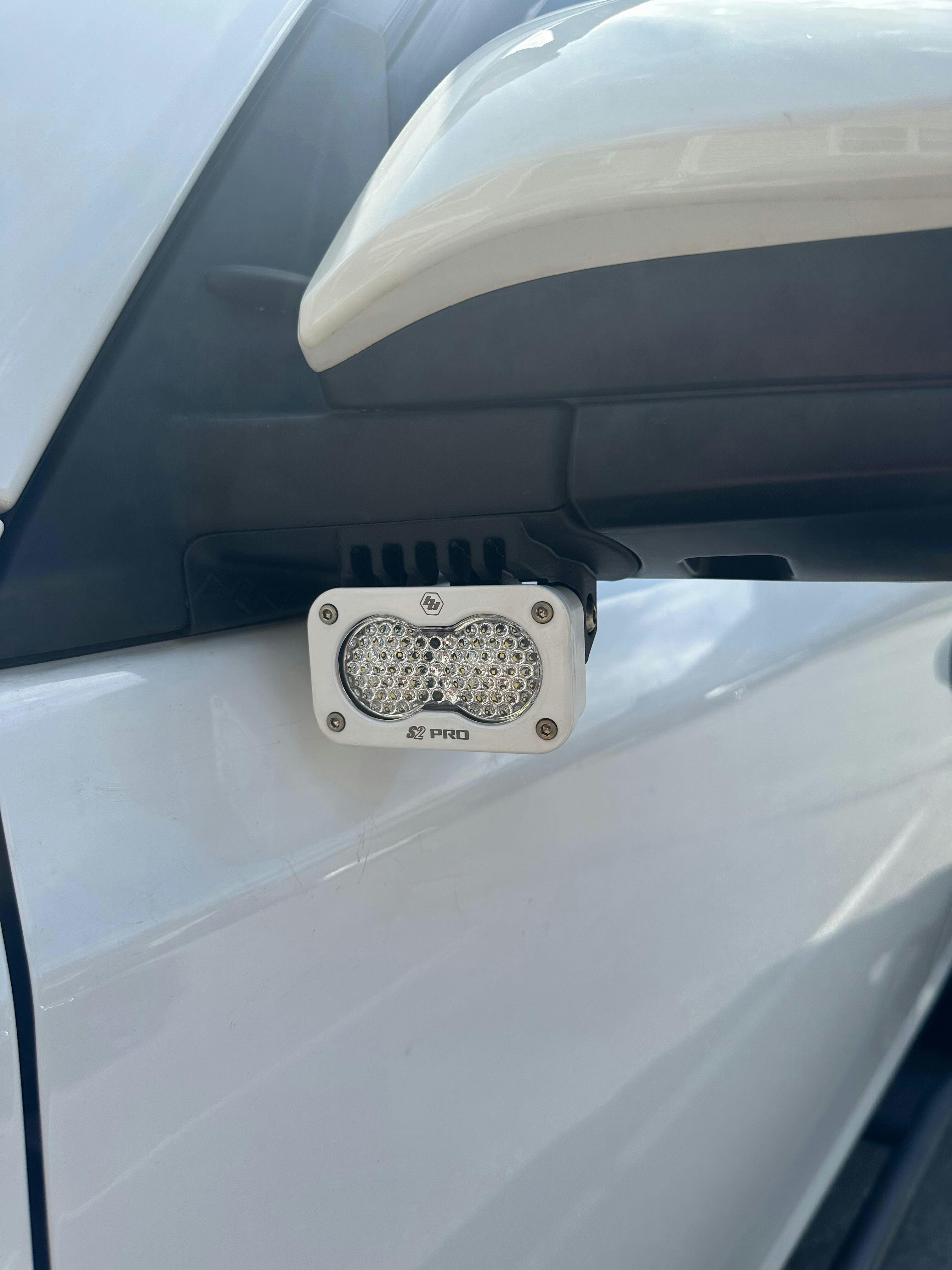

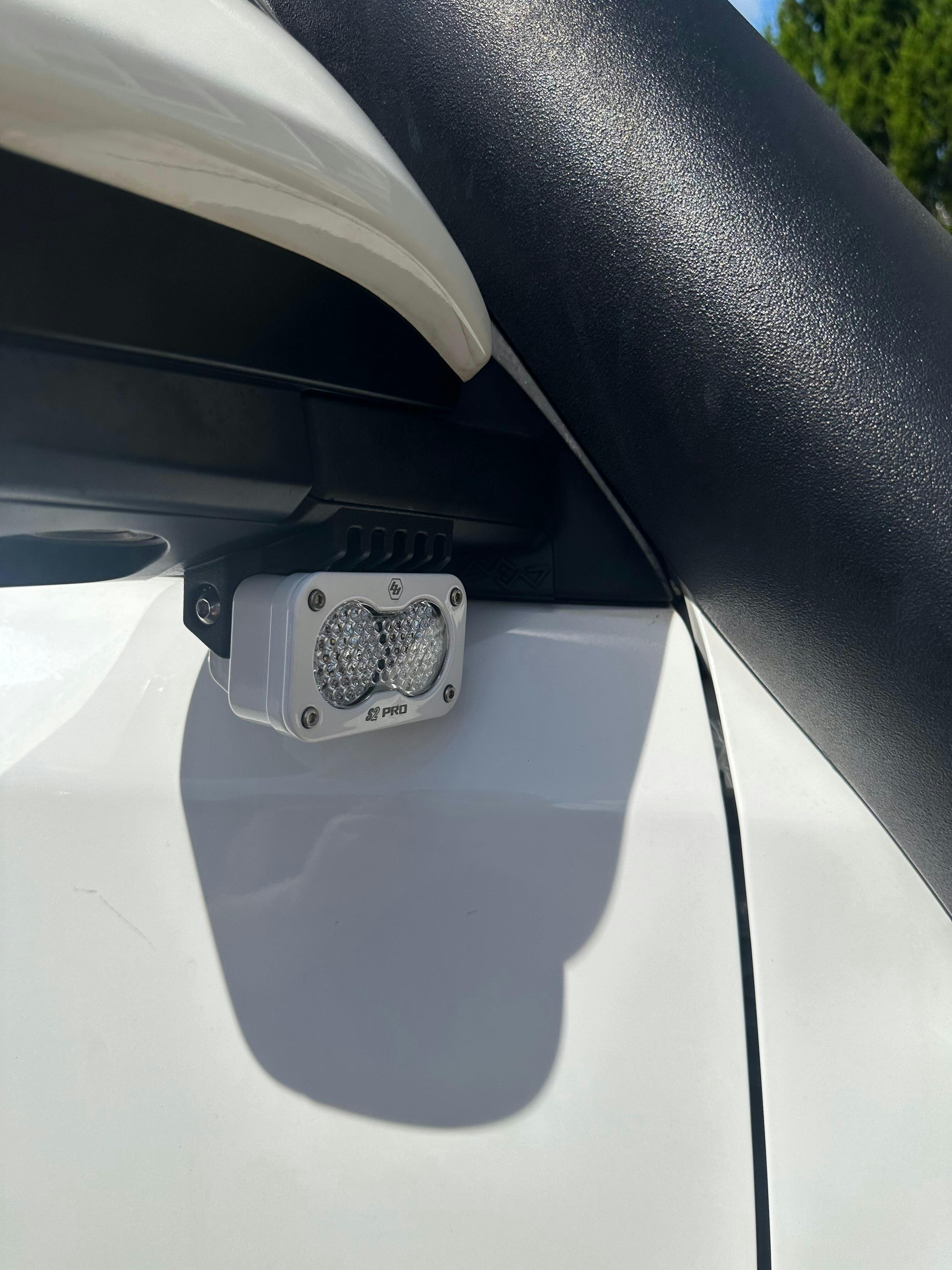

Was watching from day one when this started its development. Purchased asap once available. So happy and suck a solid product. Pairs well with the white Baja design s2 with a white 4runner.
What can I say? Mr. Minwin3d nailed this project with spot on perfection with attention to every detail. I was slightly intimidated doing the lights install myself due to being a novice. I lost my intimidation once I viewed the absolutely stellar install video. The video addressed every detail SIMPLY & with extreme detail. I installed these with EASE. Mr. Minwin3d nailed this project. 5 stars.
Badass OEM style mount kit. Originally had an issue with the Fuse Relay not working but almost instantaneously got a response back when I reached out. Was able to install everything back with the new relay and it works like a beauty. Couldnt have asked for a more clean, OEM style look. 10/10 recommend.
Kit was so simple, thorough, and well planned out. Made it the easiest kit I’ve installed on my car!!
